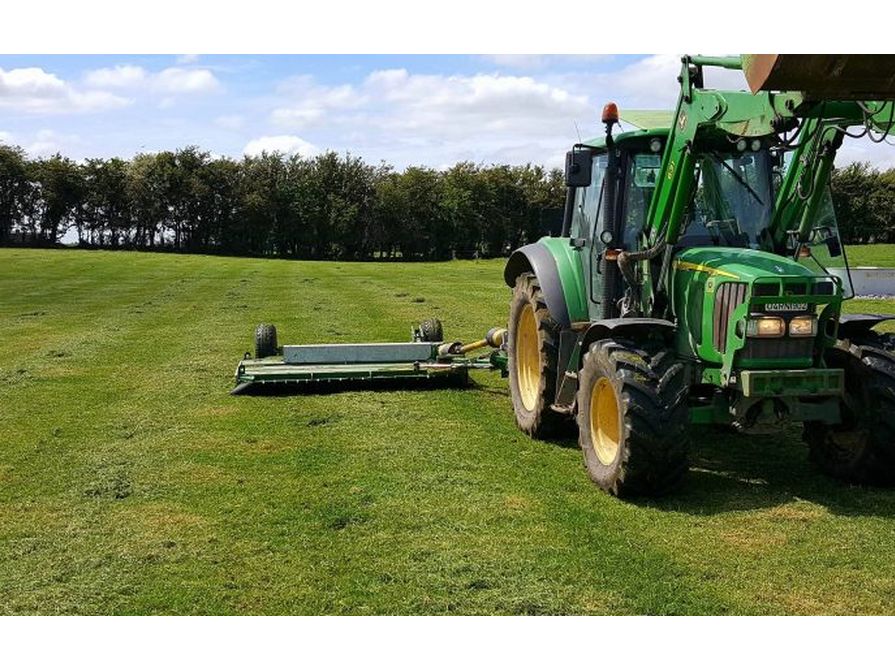

The MAJOR Trailed Topper is a fully offset gear driven machine. It is offset for working and is folded into transport position hydraulically from the tractor seat.
The rotors are timed with each other and have an overlap of 3 inches (75mm). The blades rotate in opposite directions to each other and spread the cut grass evenly behind the machine. As the machine is fully offset there is no trampling of the pasture prior to cutting. The cutting height is set at the desired level by moving the adjustable side skids to the appropriate position. There is a limit stop on the ram which controls the rear axle.
Model | 8FTGD-HD | 9TFGD-HD | 12FTGDW-HD |
---|---|---|---|
Overall Width | 2.4m (8′) | 2.7m (9′) | 3.57m (12′) |
Working Width | 2.4m (8′) | 2.7m (9′) | 3.57m (12′) |
Transport Width | 2.6m (8’5″) | 2.9m (9’5″) | 2.6m (8’5″) |
No. of Blades | 8 | 8 | 12 |
No. of Rotors | 2 | 2 | 3 |
Power (HP) | 35-100 | 40-110 | 40-120 |
PTO (RPM) | 540 | 540 | 540 |
Blade Speed | 70 m/s | 77 m/s | 70 m/s |
Cutting Height | 50-205mm | 50-205mm | 50-205mm |
Weight | 550 kg | 650 kg | 1240 kg |
